Replace GUI Camera

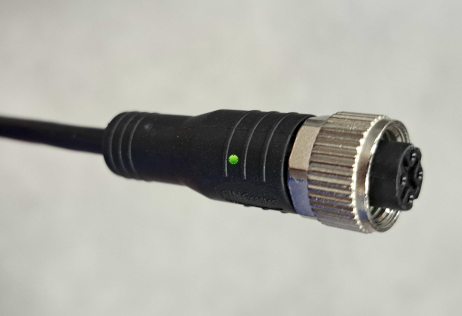

  1. Disconnect defective camera from extension cable. The connector will look like the image below


  1. Remove the clamp from the platform

    • In case the camera in question is connected to the load cell module, disconnect the load cell from the table and the bungee cord

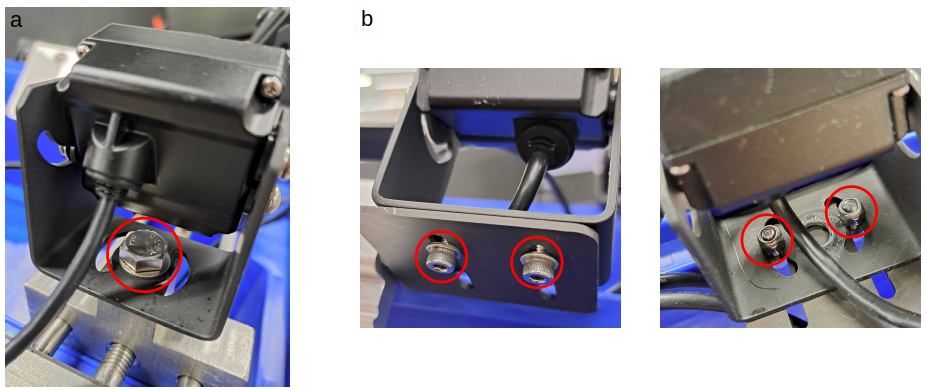

  2. There are 2 types of connections for the GUI camera (see figure below). Disconnect the camera from the holder (a or b)


  1. Connect the new camera in the same orientation as the previously removed camera

  2. Connect the camera cable to the extension cable
